Introducing...

MPACTV_1-1

Multi Radiance's NEW Shockwave Therapy

The state-of-the-art MPACTVet Extracorporeal Shockwave therapy (ESWT) Unit is an innovative, non-invasive device that provides safe and comfortable treatment without sedation. MPACTVet provides precise, adjustable penetration depth to areas of up to 200mm through a variety of handpieces and applicators that provide faster tissue healing and pain relief from a powerful, yet quiet piezoelectric powertrain.

↓ Request A Demo ↓

Device Branding 11-18-2024 MPARCT Vet-1-1

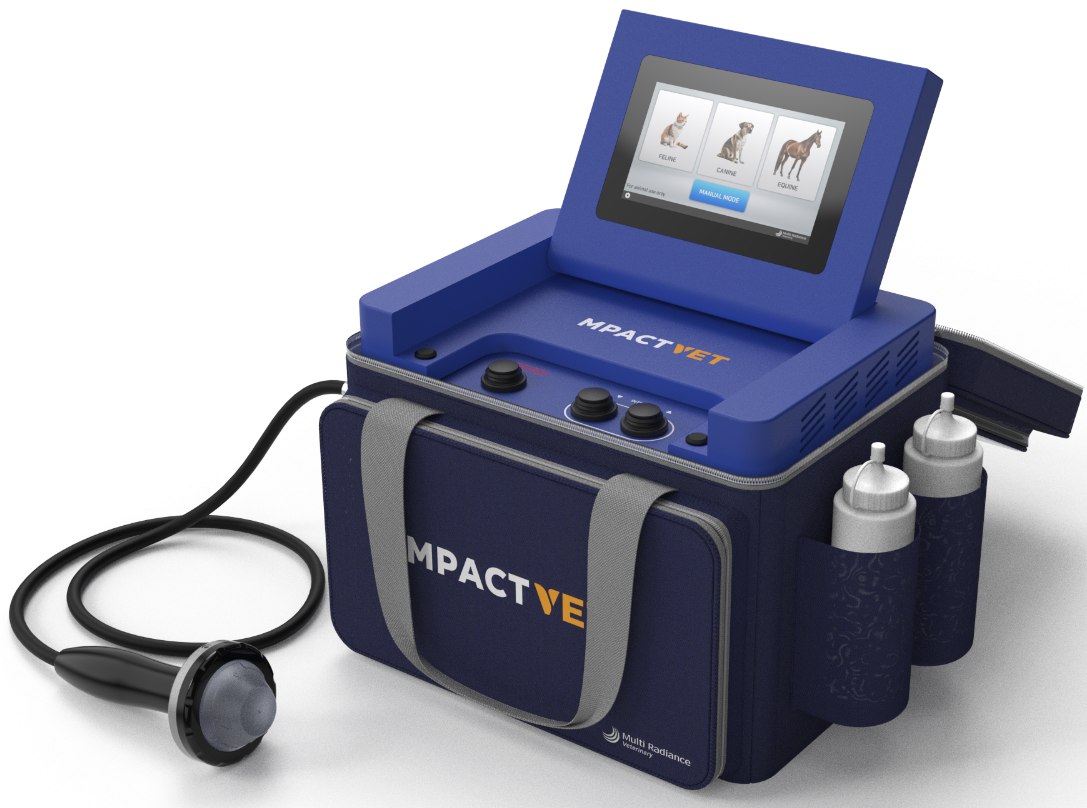

MPACTVet - A Powerful, Quiet, and Pain-Free Piezoelectric Device!

  • Icon

    Accurately Controlled Energy

    Accurately control the shape and composition of the energy profile with state-of-the-art transducers comprised of more than 200 piezoelectric elements.

  • Icon

    Intuitive Interface

    Select the most common treatments based on easy-to-navigate species- and anatomy-based protocol selection menu with the Flexibility of real-time customization of intensity, frequency and total number of pulses.

  • Icon

    Portable & Rugged

    Integrated, rugged carrying case with built-in storage provides portability for quick use in multiple environments.

  • Icon

    The Right Tool for Any Job

    Choose from a variety of focused handpieces of 25, 40, 60, and 110mm and 25mm Linear, each with a set 5-6 standoffs for optimal tissue penetration.

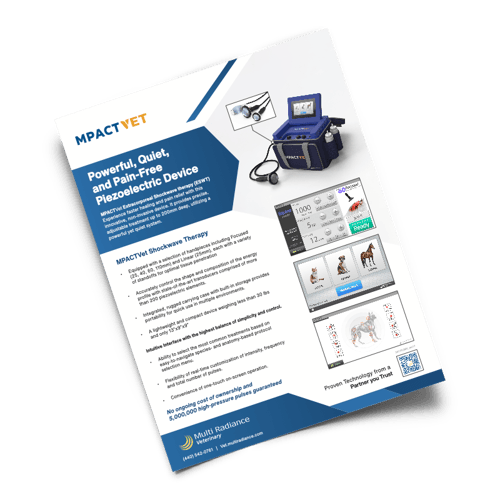

Download Our Product Flyer

MPACTVet_BrochureDownload_Example

What is Piezoelectric Shockwave?

MPACTVet_Piezoelectric_Tech_diagram

Piezoelectric shock wave is a direct focusing method, and it has a faster treatment effect, convenience of use, and excellent durability compared to the existing electro-hydraulic, radial, and electromagnetic methods.

Choose From a Wide Variety of Treatment Handpieces to best fit your practice

Options include focused 25, 40, 60 and 110mm handpieces and a 25mm linear handpiece to suit your treatment area, with single pulse high pressure wave / high peak pressure up to 147 MPa or more. More than 200 piezoelectric elements deliver the exact amount of energy.

5,000,000 high-pressure pulses, guaranteed

MPACTVet_Gel Pads_six  With various gel pad configurations maximizing treatment efficiency

Type Handpiece Penetration Depth & Treatment Area
Type
icon

Focused

110 mm Handpiece

Includes 5 gel pads: 70, 80, 90, 100, & 110
Handpiece

MPACT_Assets_Handpieces_110.001

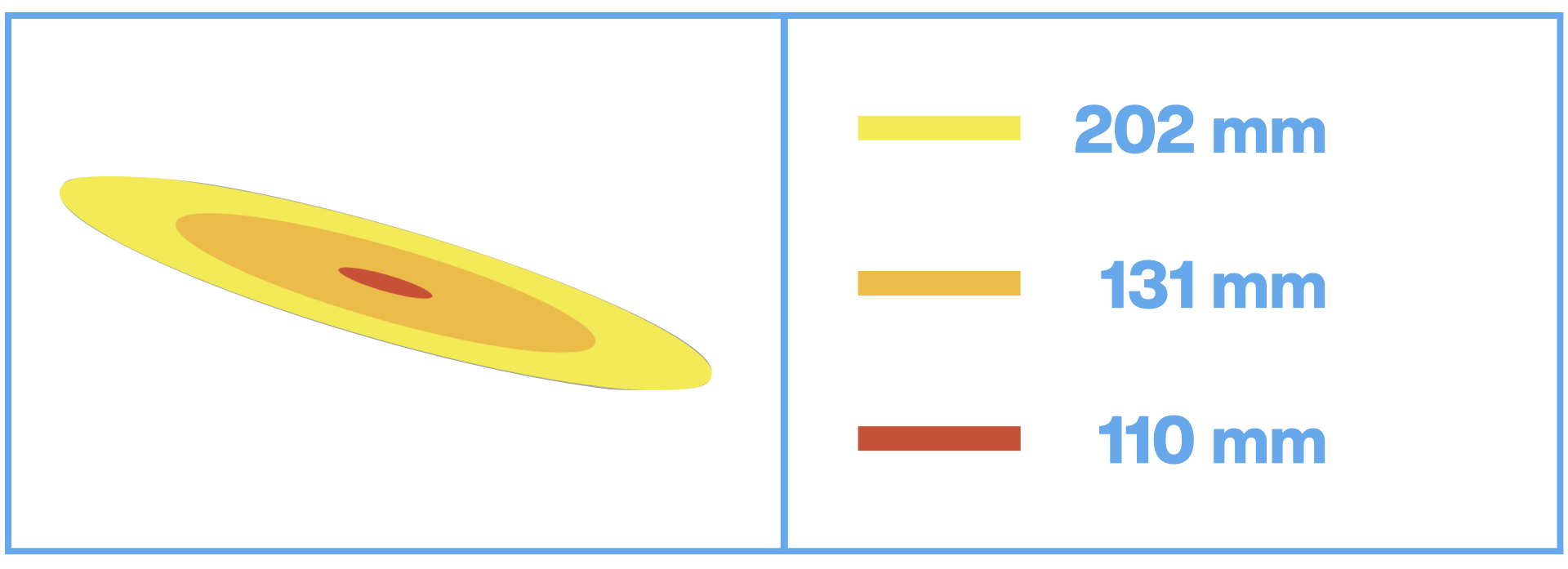

Penetration Depth & Treatment Area

MPACT_Assets_Handpieces_TreatmentArea_.110mm
Type
icon

Focused

60 mm Handpiece

Includes 6 gel pads: 10, 20, 30, 40, 50, & 60
Handpiece
MPACT_Assets_Handpieces_60.002

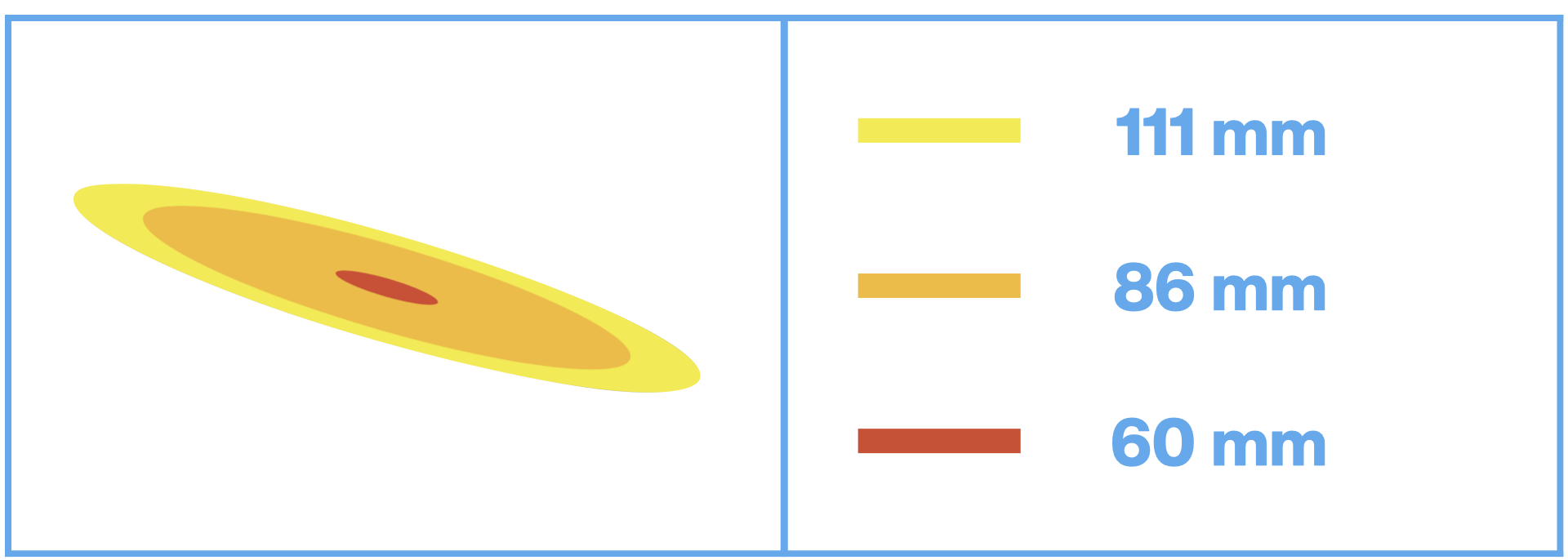

Penetration Depth & Treatment Area

MPACT_Assets_Handpieces_TreatmentArea_60mm
Type
icon

Focused

40 mm Handpiece

Includes 6 gel pads: 10, 15, 20, 25, 30, & 40
Handpiece
MPACT_Assets_Handpieces_40.003

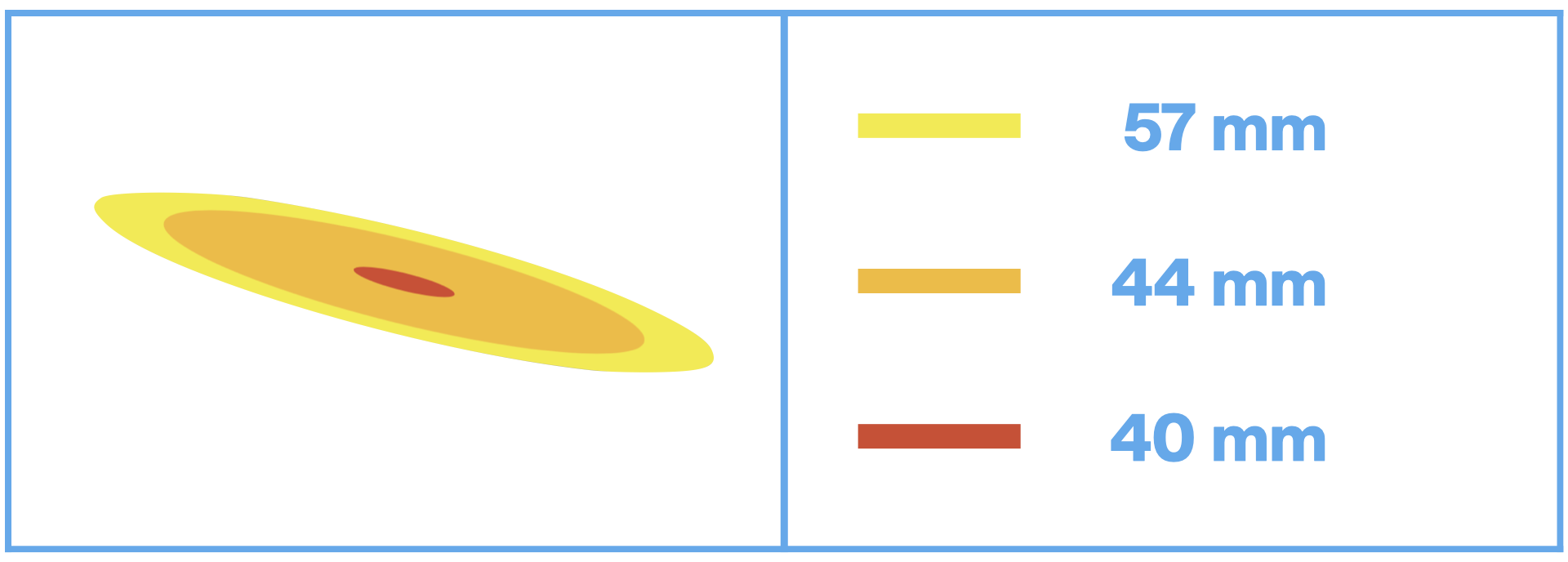

Penetration Depth & Treatment Area

MPACT_Assets_Handpieces_TreatmentArea_40mm
Type

Focused

25 mm Handpiece

Includes 5 gel pads: 5, 10, 15, 20, & 25
Handpiece
MPACT_Assets_Handpieces_25.004

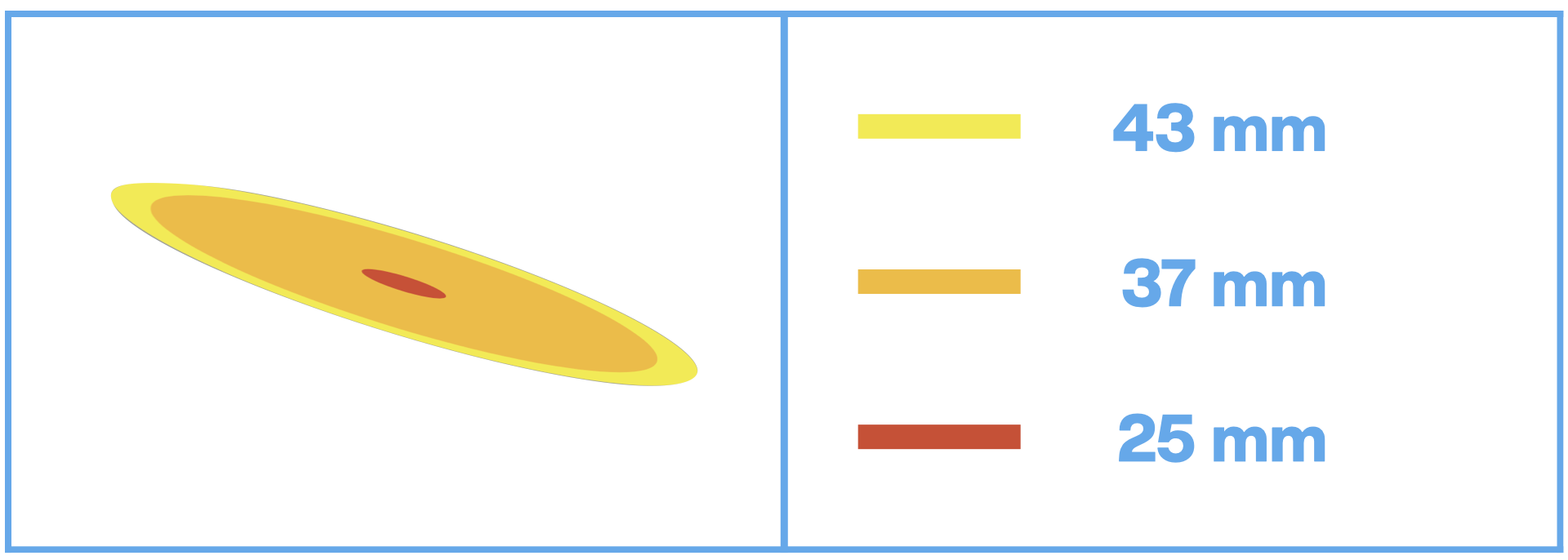

Penetration Depth & Treatment Area

MPACT_Assets_Handpieces_TreatmentArea_25mm
Type

Linear

25 mm Handpiece

Includes 5 gel pads: 5, 10, 15, 20, & 25
Handpiece
MPACT_Assets_Handpieces_Linear.005

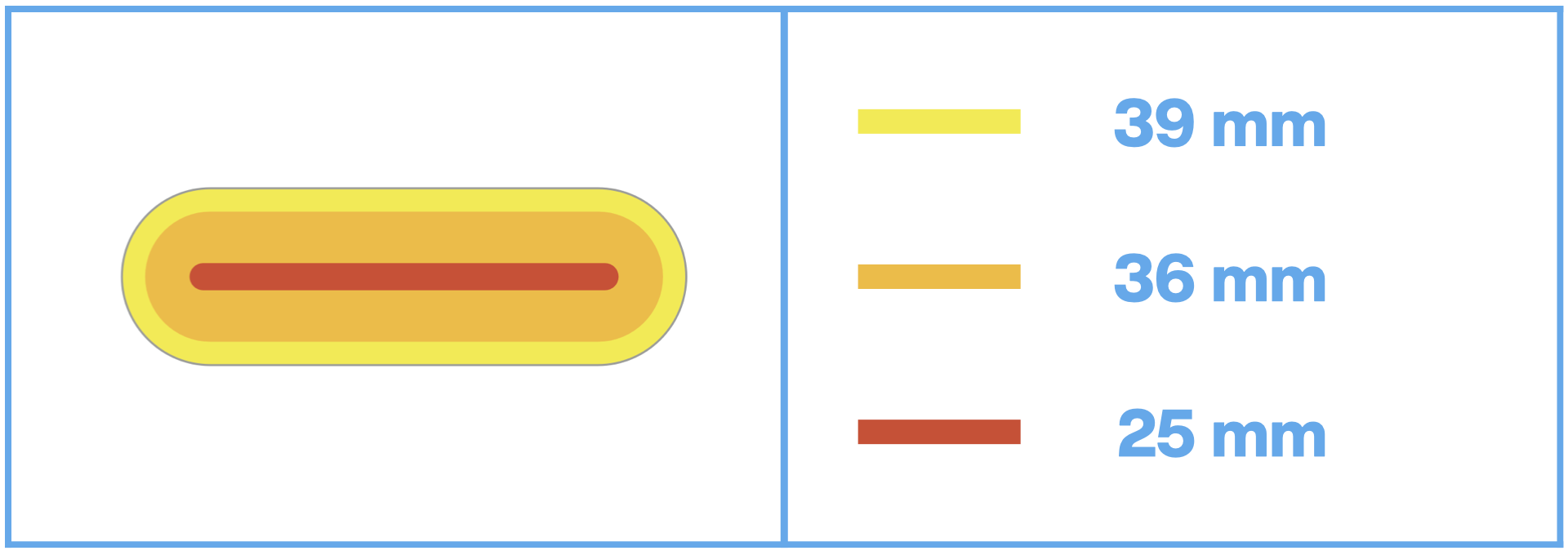

Penetration Depth & Treatment Area

MPACT_Assets_Handpieces_TreatmentArea_25Lmm
Treatment area (Focal cross-section)

Yellow zone: 5MPa Zone / Acoustic pressure is at least 5 MPa

Orange zone: -6dB Zone / Acoustic pressure is 50% of the maximum acoustic pressure

Red dot: Maximum acoustic pressure in MPa



Broad Range of Conditions Treated

  • Osteoarthritis
  • DJD
  • Post TPLO
  • IVDD and lumbosacral stenosis
  • Shoulder, elbow, and carpal diseases
  • Bone healing disturbances
  • Acute and chronic tendon/ ligament injuries
  • Myofascial trigger points
  • And Much More!
canine_25mm

What’s included

  • 1 MPACTVet System and Choice of Handpiece
  • 6 Rugged Carrying Case
  • Frame 96 Set of 5-6 Gel Pads
  • 5 110V Power Cord
  • 2 Operating Manual
  • veterinary-about-complete-icons Staff Training
  • 7 2-Year Limited Warranty On MPACTVet System
  • 7 1-Year Manufacture Defects Warranty on Handpieces (5M Pulses*)

Intuitive Interface

With built in protocols for Feline, Canine, and Equine, Select the most common treatments based on easy-to-navigate species- and anatomy-based protocol selection menu with the flexibility of real-time customization of intensity, frequency and total number of pulses.



main_Initial Screen
canine_25mm
canine knee
feline_60mm
feline hip-linear
equine_25mm
equine Hip joint

MPACTVet System Specifications

Specification Value
Model Extracorporeal shock wave therapy MPACTVet
Type Class 1 ME equipment, BF Type
Ratings 220-230V or 110V, 50/60Hz, 200VA
Size ~13"x9"x9" (Main Body)
Weight ~28 lbs (Main Body)

Focused ESWT Handpiece Specifications

Specification Value
Energy Density (Power) 0.023~0.243 mJ/mm2
Peak Positive Pressure 90.3 MPA
Frequency 10 Hz
Shock Wave Energy per Pulse 40.5 mJ
Kind of Applications 110 mm

Linear ESWT Handpiece Specifications

Specification Value
Energy Density (Power) 0.03-0.16 mJ/mm2
Peak Positive Pressure 21 Mpa
Frequency 10 Hz
Shock Wave Energy per Pulse 30 mJ
Kind of Applications 25 mm
Quote Mark

Over the past 25 years, I have used numerous shockwave units including radial shockwave and numerous focused shockwave units including electrohydraulic and piezoelectric units. I have found that the piezoelectric units provide similar clinical results to the electrohydraulic units. I currently use the MPACTVet® shockwave unit from Multi Radiance. Advantages of this unit include quiet operation, length of the treatment cables and the fact that the electrodes are warrantied up to five million pulses. Depth of penetration is comparable if not better than other units on the market. The unit itself is portable, allowing for easy transport to the farm or to the stall. When you couple this shockwave unit with their AlphaVet® or ACTIVet PRO® Super Pulsed laser systems, you have a versatile setup to treat a variety of conditions ranging from wounds to musculoskeletal injuries.

Steve Adair, MS, DVM, DACVS, DACVSMR, CERP, Emeritus Professor Equine Surgery and Rehabilitation
University of Tennessee Veterinary Medical Center

Dr. Steve Adair
